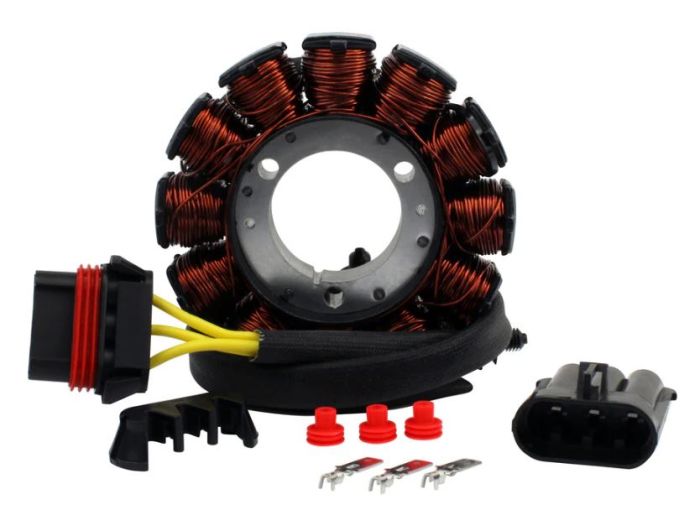

Stator 850W for Can-Am Defender 2020-2025 - RMS010-108471

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 720 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

Before installing your new stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2025 Can-Am Defender HD10 LTD Cab2025 Can-Am Defender HD10 LTD Cab 6x62025 Can-Am Defender Max HD10 LTD Cab2025 Can-Am Defender Pro HD10 LTD Cab2024 Can-Am Defender HD10 LTD Cab2024 Can-Am Defender HD10 LTD Cab 6x62024 Can-Am Defender Max HD10 LTD Cab2024 Can-Am Defender Pro HD10 LTD Cab2023 Can-Am Defender HD10 LTD Cab2023 Can-Am Defender HD10 LTD Cab 6x62023 Can-Am Defender Max HD10 LTD Cab2023 Can-Am Defender Pro HD10 LTD Cab2022 Can-Am Defender HD10 LTD Cab2022 Can-Am Defender HD10 LTD Cab 6x62022 Can-Am Defender Max HD10 LTD Cab2022 Can-Am Defender Pro HD10 LTD Cab2021 Can-Am Defender HD10 LTD Cab2021 Can-Am Defender Max HD10 LTD Cab2021 Can-Am Defender Pro HD10 LTD Cab2020 Can-Am Defender HD10 LTD Cab2020 Can-Am Defender Max HD10 LTD Cab
