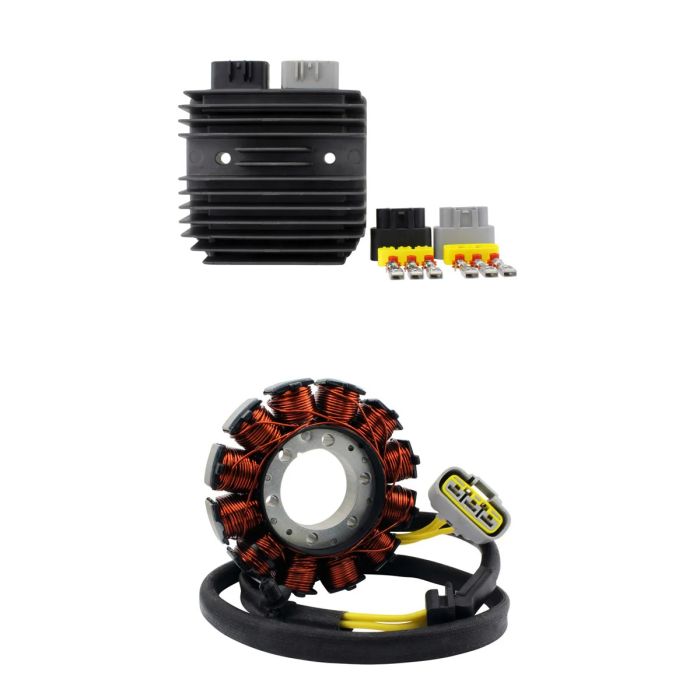

Stator + Mosfet Regulator for Can-Am Maverick / Defender 2020-2024 - RMS900-108494

Stator + Mosfet Voltage Regulator Rectifier Kit

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

The quality exceeds the OEM equipment

All RMStator products are tested

Stator:

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

Connectors included

Rubber grommet included

MOSFET Regulator Rectifier:

Improved heat sink and charging capabilities

Higher grade of electric components

STOP BURNING YOUR REGULATOR RECTIFIER

It is time to update or replace your voltage regulator with the advanced MOSFET type

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Can-AM OE: 108494-R00

Stator:

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 170 mm
Length of wires grommet to plug: 720 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.3 ohms +/-20%

Mosfet Regulator:

Dimensions:
Width: 120 mm
Length: 110 mm
Height: 37 mm
Distance between fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Before installing your new stator and voltage regulator rectifier

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2024 Can-Am Commander 10002023 Can-Am Maverick Sport 1000 R2023 Can-Am Defender HD9 9002023 Can-Am Defender HD10 DPS2023 Can-Am Defender HD10 DPS 6x62023 Can-Am Defender HD10 X MR2023 Can-Am Defender HD10 XT2023 Can-Am Defender HD10 XT 6x62023 Can-Am Defender Max HD10 DPS2023 Can-Am Defender Max HD10 X MR2023 Can-Am Defender Max HD10 XT2023 Can-Am Defender Pro HD10 DPS2023 Can-Am Defender Pro HD10 XT2022 Can-Am Maverick Sport 10002022 Can-Am Maverick Sport 1000 R2022 Can-Am Maverick Trail 10002022 Can-Am Traxter HD102022 Can-Am Maverick Max 1000R Sport2022 Can-Am Traxter PRO HD102022 Can-Am Traxter T HD102022 Can-Am Commander 10002022 Can-Am Commander Max 10002022 Can-Am Defender HD9 9002022 Can-Am Defender Max HD9 9002022 Can-Am Traxter HD92022 Can-Am Traxter Max HD92022 Can-Am Traxter T HD92022 Can-Am Traxter T Max HD102022 Can-Am Defender HD10 DPS2022 Can-Am Defender HD10 DPS 6x62022 Can-Am Defender HD10 X MR2022 Can-Am Defender HD10 XT2022 Can-Am Defender HD10 XT 6x62022 Can-Am Defender Max HD10 DPS2022 Can-Am Defender Max HD10 X MR2022 Can-Am Defender Max HD10 XT2022 Can-Am Defender Pro HD10 DPS2022 Can-Am Defender Pro HD10 Lone Star2022 Can-Am Defender Pro HD10 XT2021 Can-Am Defender HD8 8002021 Can-Am Defender Max HD8 8002021 Can-Am Maverick Sport 10002021 Can-Am Maverick Sport 1000 R2021 Can-Am Maverick Trail 10002021 Can-Am Maverick Trail 8002021 Can-Am Traxter HD102021 Can-Am Traxter Max HD82021 Can-Am Traxter HD82021 Can-Am Maverick Max 1000R Sport2021 Can-Am Traxter PRO HD102021 Can-Am Traxter T HD102021 Can-Am Commander 10002021 Can-Am Traxter T HD82021 Can-Am Defender HD10 DPS2021 Can-Am Defender HD10 DPS 6x62021 Can-Am Defender HD10 X MR2021 Can-Am Defender HD10 XT2021 Can-Am Defender HD10 XT 6x62021 Can-Am Defender Max HD10 DPS2021 Can-Am Defender Max HD10 X MR2021 Can-Am Defender Max HD10 XT2021 Can-Am Defender Pro HD10 Lone Star2021 Can-Am Defender Pro HD10 XT2020 Can-Am Defender HD8 8002020 Can-Am Defender Max HD8 8002020 Can-Am Maverick Sport 10002020 Can-Am Maverick Sport 1000 R2020 Can-Am Maverick Trail 10002020 Can-Am Maverick Trail 8002020 Can-Am Traxter HD102020 Can-Am Traxter HD82020 Can-Am Defender HD10 DPS2020 Can-Am Defender HD10 STD 6x62020 Can-Am Defender HD10 X MR2020 Can-Am Defender HD10 XT2020 Can-Am Defender Pro HD10 STD2020 Can-Am Defender HD10 XT Cab2020 Can-Am Defender HD10 XT-P2020 Can-Am Defender Max HD10 DPS2020 Can-Am Defender Max HD10 X MR2020 Can-Am Defender Max HD10 XT
