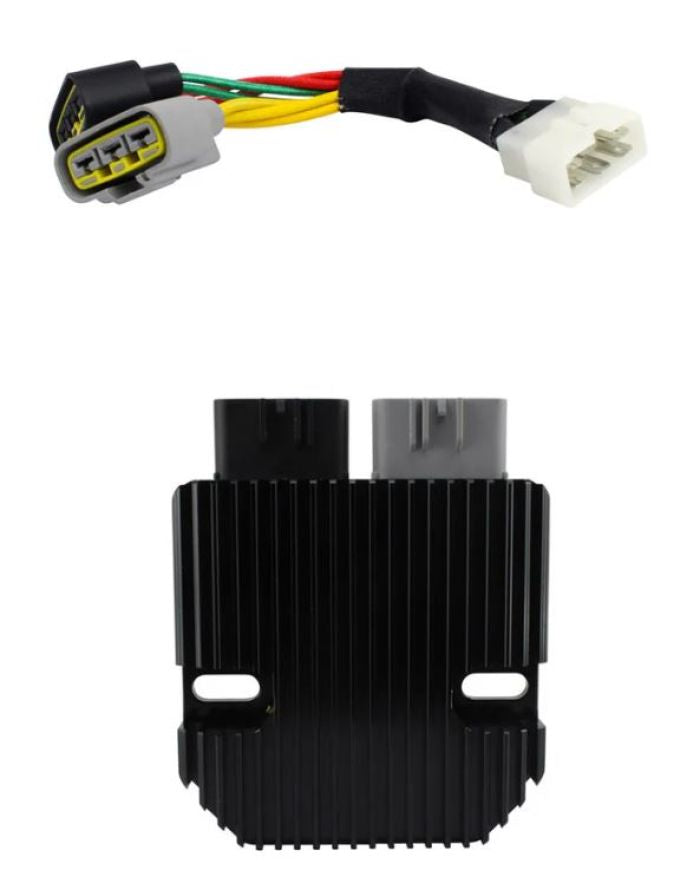

REVOLT Regulator + Harness for Arctic Cat 1996-2022 - RMS022-108517

Brand new REVOLT Voltage Regulator + Harness

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

REVOLT Voltage Regulator Rectifier :

Width: 102 mm
Length: 103 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Harness :

Wires length : 150 mm
Number of yellow wires: 3
Number of red wires: 2
Number of green wires: 2
Number of plugs: 4

Before installing your new REVOLT Voltage Regulator Rectifier:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2022 Triumph Scrambler 9002022 Triumph Bonneville 9002022 Triumph Bonneville T1002021 Triumph Scrambler 9002021 Triumph Bonneville 9002021 Triumph Bonneville T1002020 Triumph Scrambler 9002020 Triumph Bonneville 9002020 Triumph America 9002020 Triumph Bonneville T1002020 Triumph Speedmaster 9002020 Triumph Thruxton 9002019 Triumph Scrambler 9002019 Triumph Bonneville 9002019 Triumph America 9002019 Triumph Bonneville T1002019 Triumph Speedmaster 9002019 Triumph Thruxton 9002018 Triumph Scrambler 9002018 Triumph Bonneville 9002018 Triumph America 9002018 Triumph Bonneville T1002018 Triumph Speedmaster 9002018 Triumph Thruxton 9002017 Triumph Scrambler 9002017 Triumph Bonneville 9002017 Triumph America 9002017 Triumph Bonneville T1002017 Triumph Speedmaster 9002017 Triumph Thruxton 9002016 Triumph Scrambler 9002016 Triumph Bonneville 9002016 Triumph America 9002016 Triumph Bonneville T1002016 Triumph Speedmaster 9002016 Triumph Thruxton 9002015 Triumph Scrambler 9002015 Triumph Bonneville 9002015 Triumph America 9002015 Triumph Bonneville T1002015 Triumph Speedmaster 9002015 Triumph Thruxton 9002014 Triumph Scrambler 9002014 Triumph Bonneville 9002014 Triumph America 9002014 Triumph Bonneville T1002014 Triumph Speedmaster 9002014 Triumph Thruxton 9002013 Triumph Scrambler 9002013 Triumph Bonneville 9002013 Triumph America 9002013 Triumph Bonneville T1002013 Triumph Speedmaster 9002013 Triumph Thruxton 9002012 Triumph Scrambler 9002012 Triumph Bonneville 9002012 Triumph America 9002012 Triumph Bonneville T1002012 Triumph Speedmaster 9002012 Triumph Thruxton 9002011 Triumph Scrambler 9002011 Triumph Bonneville 9002011 Triumph America 9002011 Triumph Bonneville T1002011 Triumph Speedmaster 9002011 Triumph Thruxton 9002010 Triumph Scrambler 9002010 Triumph Bonneville 9002010 Triumph America 9002010 Triumph Bonneville T1002010 Triumph Speedmaster 9002010 Triumph Thruxton 9002009 Triumph Scrambler 9002009 Triumph Bonneville 9002009 Triumph America 9002009 Triumph Bonneville T1002009 Triumph Speedmaster 9002009 Triumph Thruxton 9002008 Triumph Scrambler 9002008 Triumph Bonneville 9002008 Triumph America 9002008 Triumph Bonneville T1002008 Triumph Speedmaster 9002008 Triumph Thruxton 9002007 Triumph Scrambler 9002007 Triumph Bonneville 9002007 Triumph America 9002007 Triumph Speedmaster 9002007 Triumph Thruxton 9002006 Triumph Scrambler 9002006 Triumph Bonneville 9002006 Triumph America 9002006 Triumph Speedmaster 9002006 Triumph Thruxton 9002005 Triumph Bonneville 9002005 Triumph America 9002005 Triumph Bonneville T1002005 Triumph Speedmaster 9002005 Triumph Thruxton 9002004 Triumph Bonneville 9002004 Triumph America 9002004 Triumph Bonneville T1002004 Triumph Speedmaster 9002004 Triumph Thruxton 9002003 Triumph TT 6002003 Triumph Bonneville 9002003 Triumph America 9002003 Triumph Bonneville T1002003 Triumph Speedmaster 9002002 Triumph TT 6002002 Triumph Bonneville 9002002 Triumph America 9002002 Triumph Bonneville T1002002 Triumph Speedmaster 9002001 Triumph TT 6002001 Triumph Bonneville 9002000 Triumph TT 6001999 Arctic Cat 400 Automatic1999 Arctic Cat 500 Automatic1998 Arctic Cat 400 Automatic1998 Arctic Cat 500 Automatic1998 Arctic Cat Bearcat 4541997 Arctic Cat Bearcat 4541996 Arctic Cat Bearcat 454
