4 Link Rod End Kit - 3/4" Chromoly Heim - 1.5" OD Tubing

50 Caliber Racing 4 Link Fab Kit - 3/4-16 x 3/4" Bore Chromoly Heims & Bungs for 1.5" OD Tubing, .095 or .120 Wall

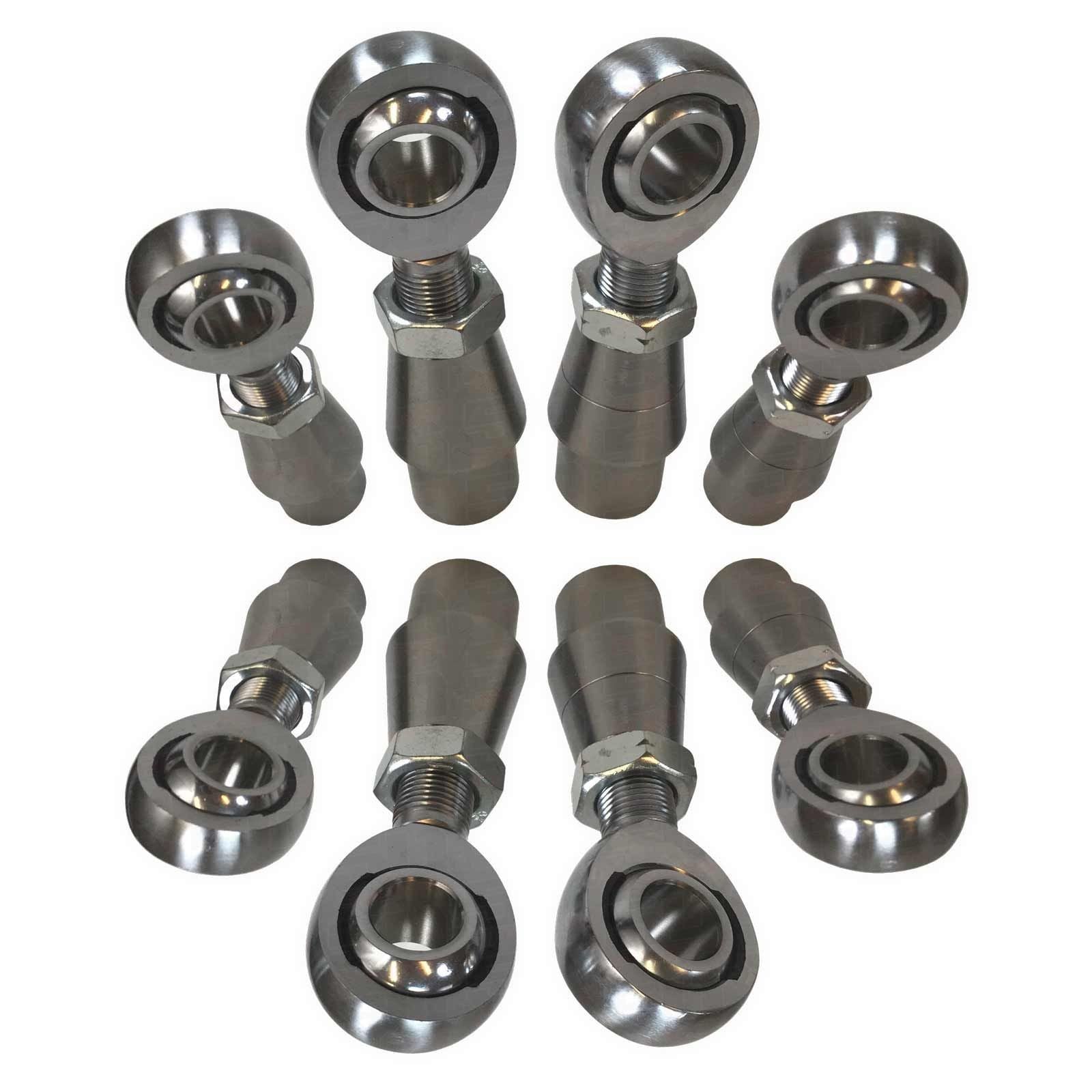

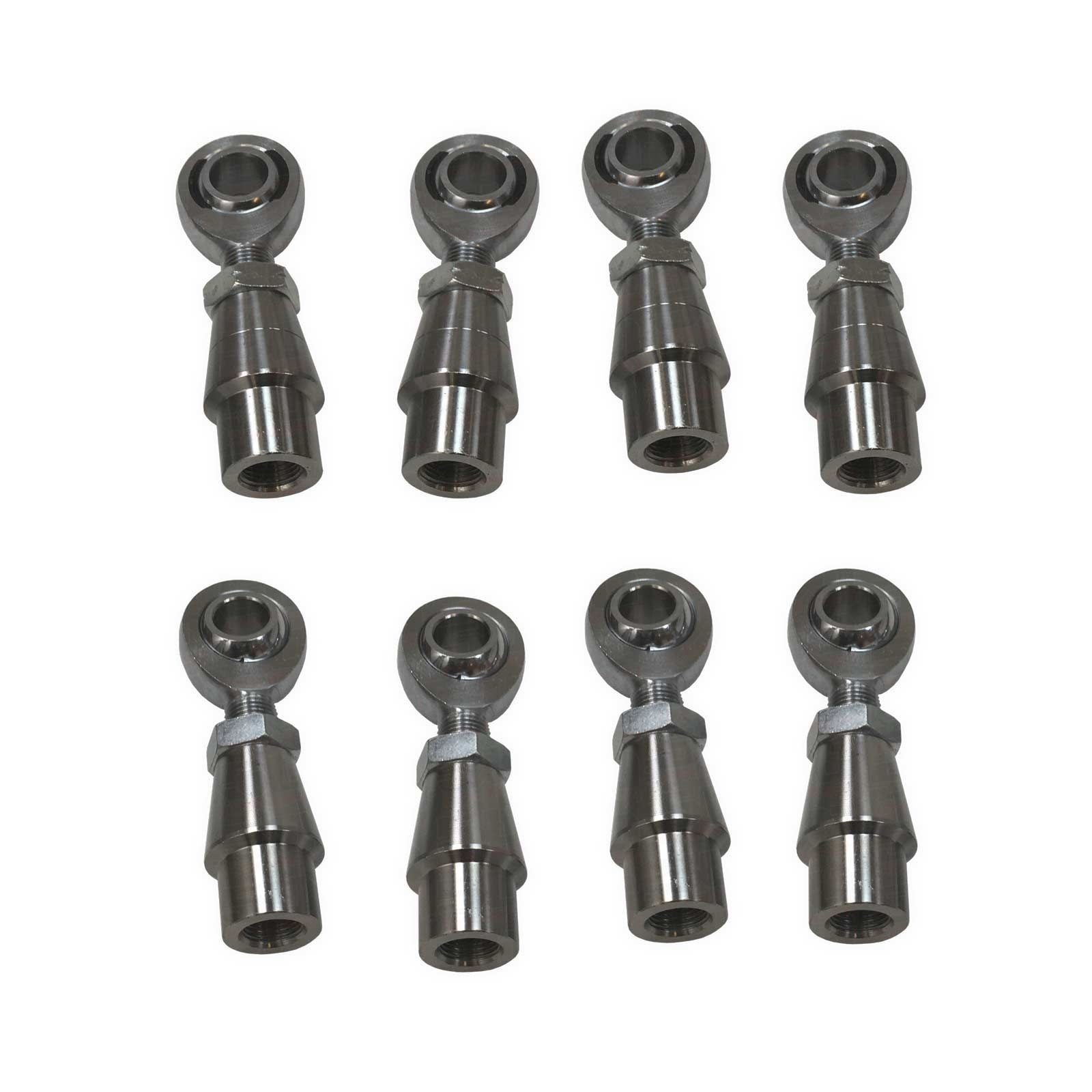

Rod end fabrication kit complete with 3/4 x 3/4 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapter). Designed specifically for 1.5" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The extreme load rating and size make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more. Includes 8 heim joints (4 left, 4 right), jam nuts, and matching bungs. Available with or without high misalignment spacers.

Includes:
- (4) 3/4-16 x 3/4" bore Heims - RH Thread
- (4) 3/4-16 x 3/4" bore Heims - LH Thread
- (4) RH Jam Nuts
- (4) LH Jam Nuts
- (4) RH Weld in Bungs (tubing adapter)
- (4) LH Weld in Bungs (tubing adapter)

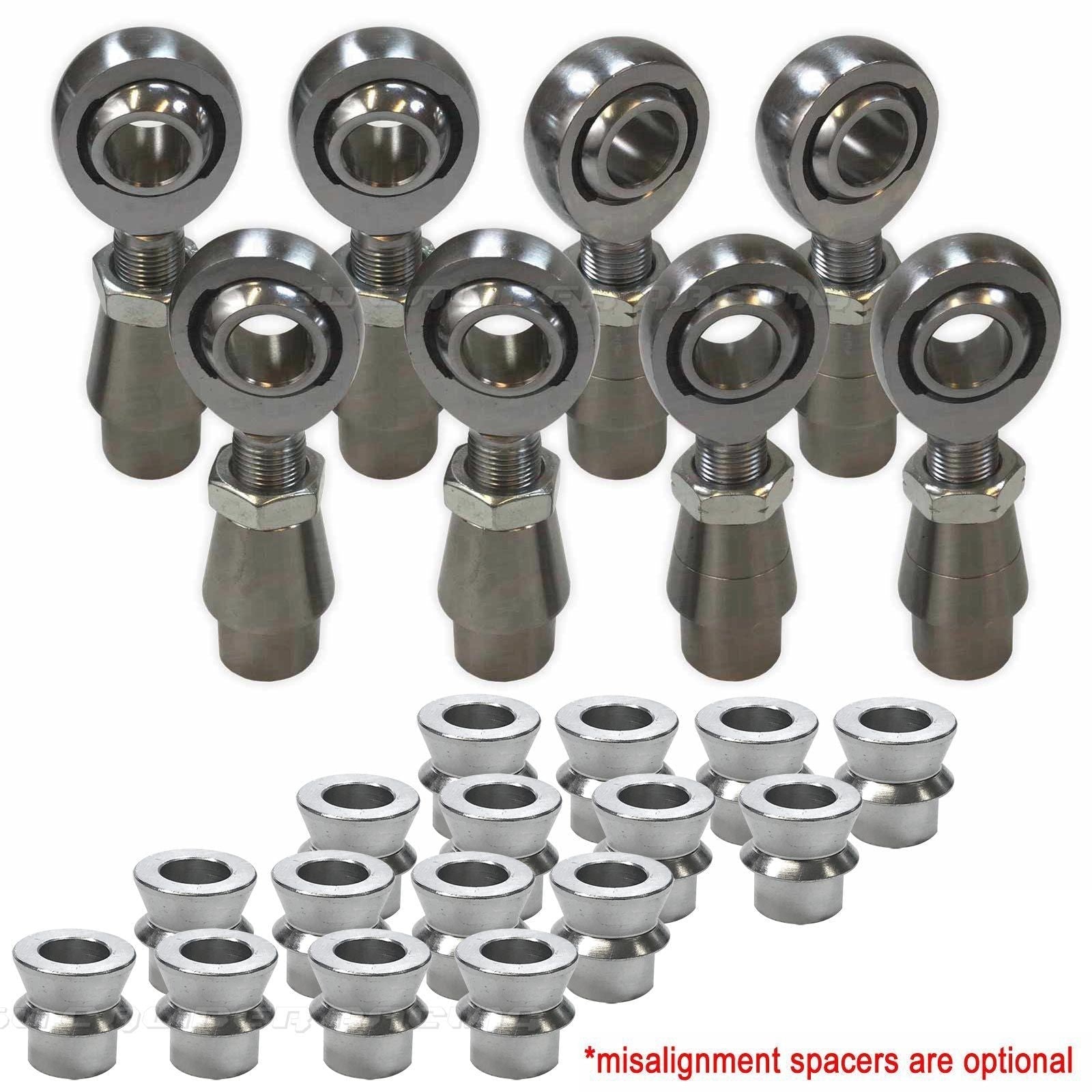

Optional:
- (16) Misalignment spacers

Specifications:

Heim Joints:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 28,081 lb
- Thread pitch: 3/4"-16
- Bore: 3/4"
- Socket end diameter: 1.750"
- Socket width: .687"
- Ball width: .875"
- Center line length: 2.875"

Bungs:
- Thread: Female 3/4"-16
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:

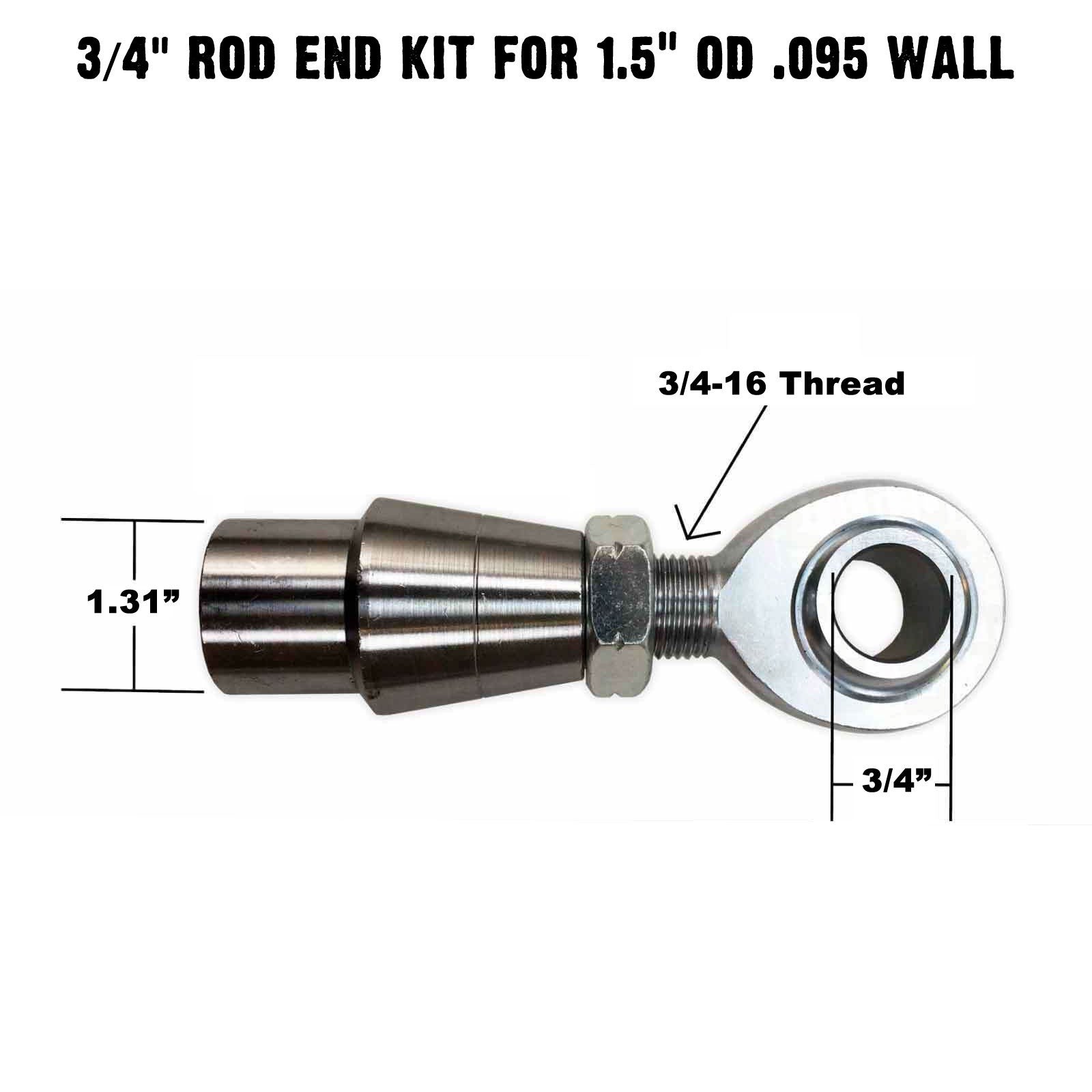

   1" OD x .095 Wall x 1.31" ID

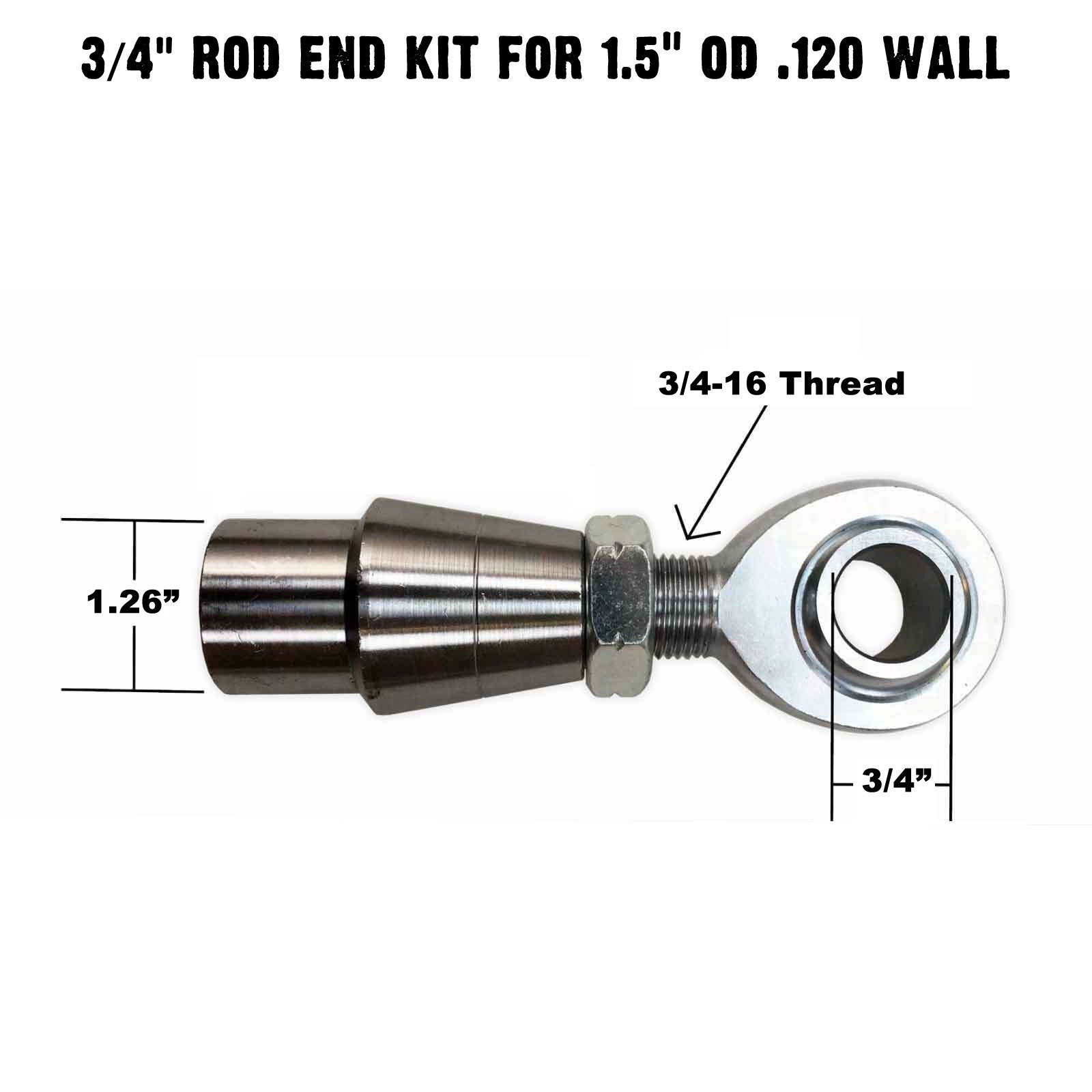

   1" OD x .120 Wall x 1.26" ID

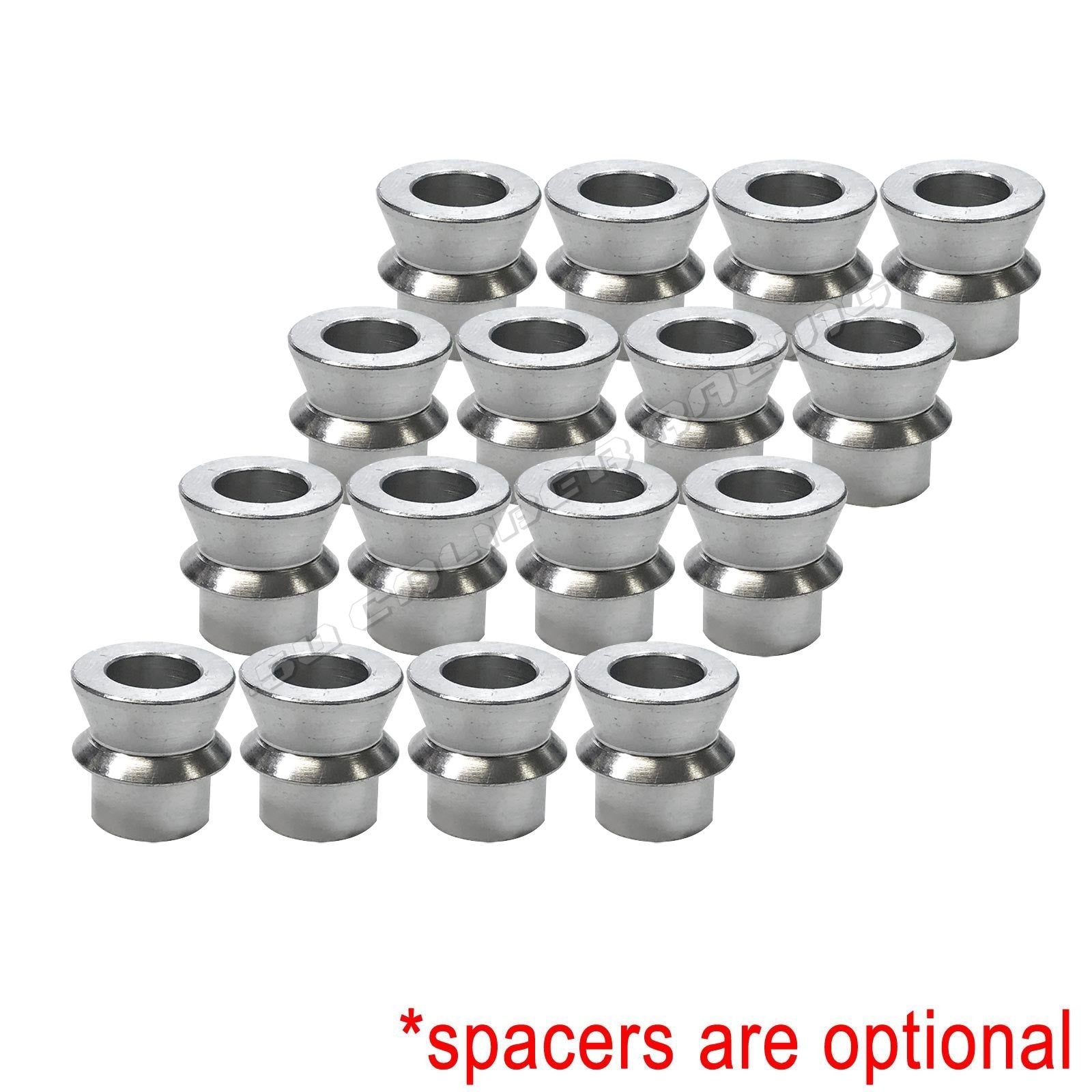

Misalignment Spacers (optional):
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .625" ID x .743" OD x .922" W
- Compatible with 5/8" bolt size

Perfect for fabricating custom suspension and steering linkage on your 4x4, rock crawler, sand rail, hot rod, race care, Jeep and more!

- 3 and 4 Link Radius Rods
- Watts Links
- Tie rods
- Control arms
- Sway bar links
- Panhard bar / trackbar
- Hi Steer
- Custom Mounts
