High Angle Misalignment Spacers for Heim Joints

High Angle Misalignment Spacers for Heim Joints

$16.14 USD
$18.99 USD $16.14 USD
Sale Sold out
Shipping calculated at checkout.
Misalignment Spacers
Universal fit

This part is not machine-specific — it fits by size, thread, or bolt pattern rather than by year, make and model. Check the specification against your machine before ordering.

Want to be sure it fits?Parts can vary by year, make, and model. If you already know it fits, go ahead and order with confidence — no call required. If you’d like a hand, reach out and we’ll gladly confirm fitment for you. Email sales@jkloffroad.com, call or text 579-509-2791.

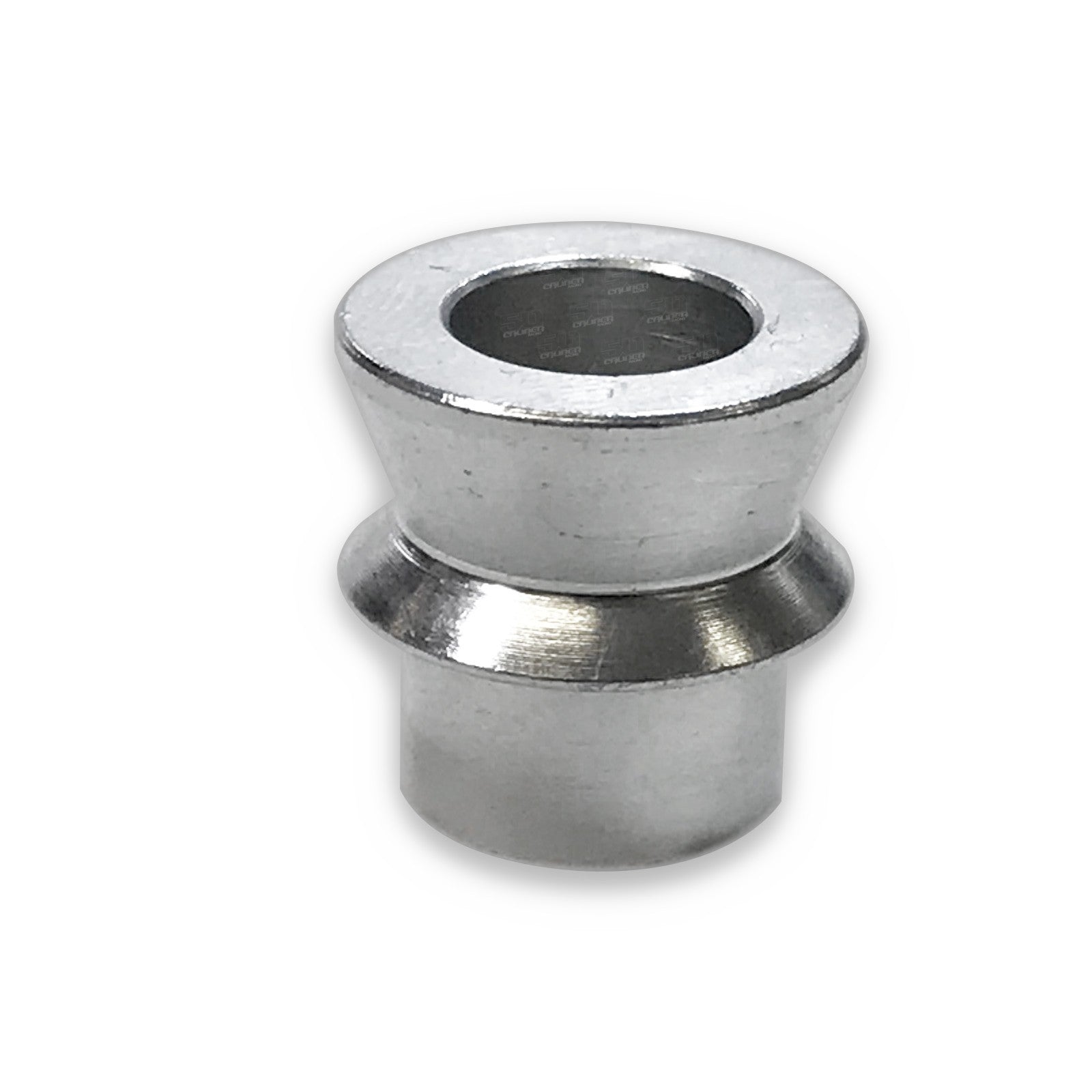

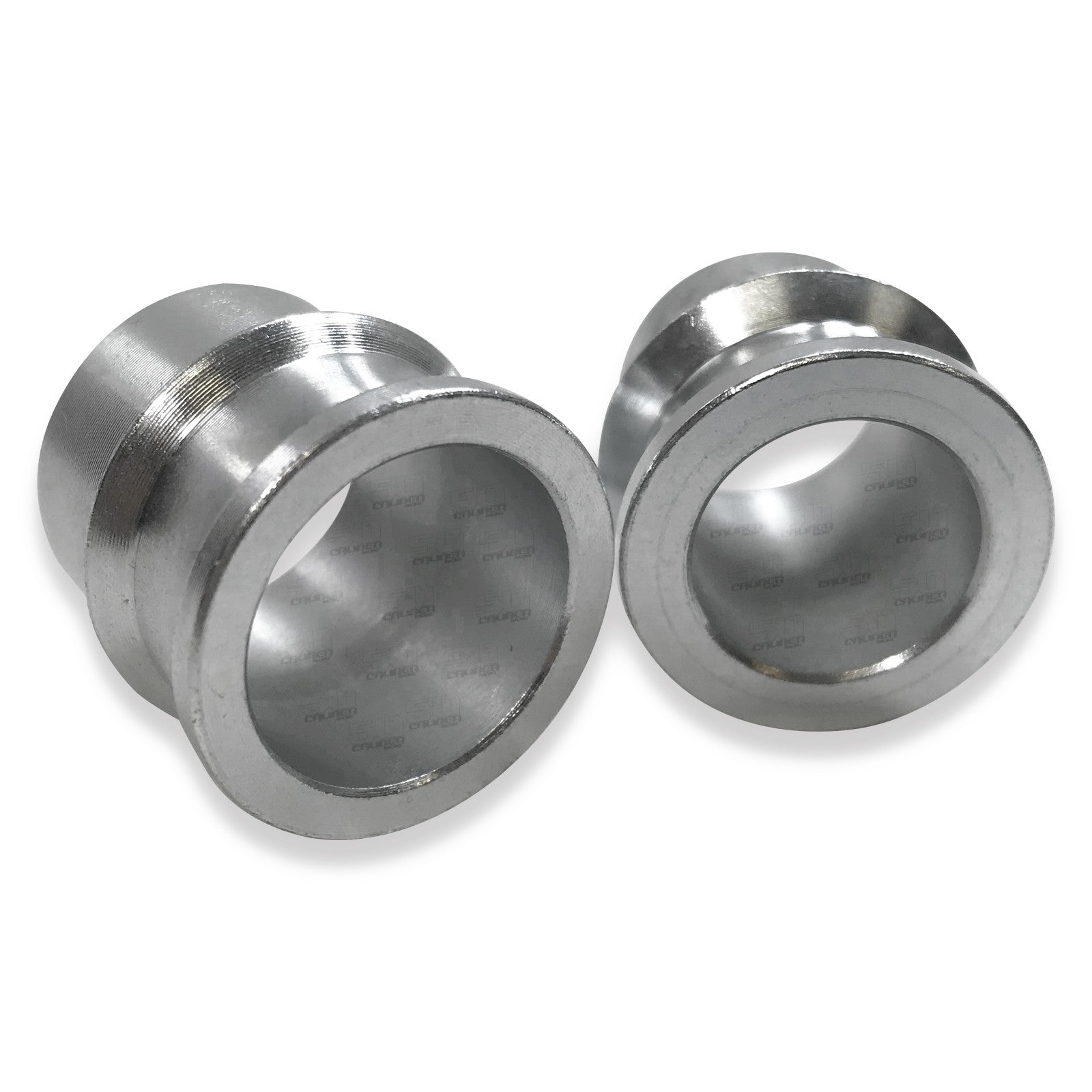

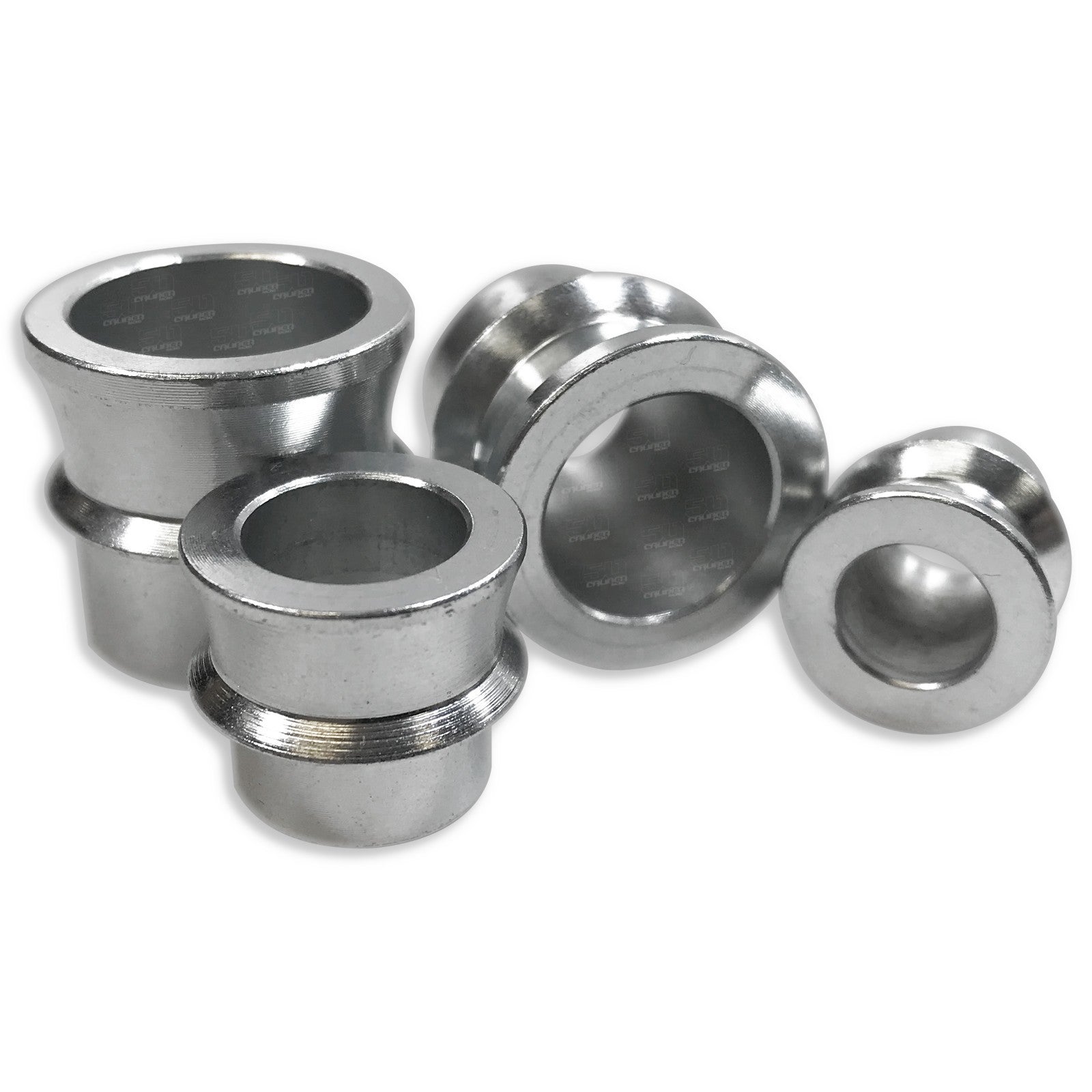

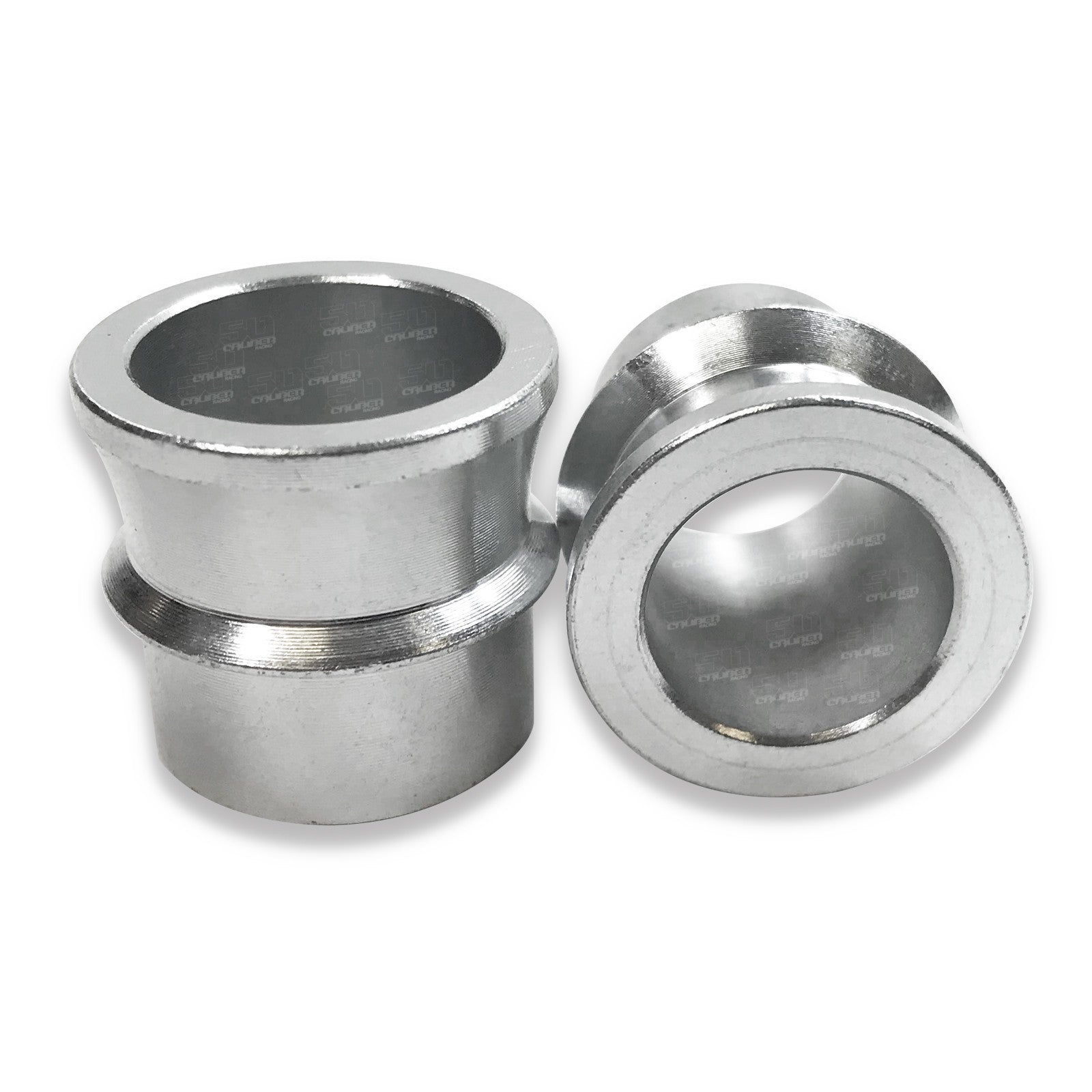

50 Caliber Racing High Angle Misalignment Spacers for Heim Joints

Made from zinc plated 4130 chromoly steel. Available in several sizes to fit any fabrication project. Used to fabricate custom tie rods, control arms sway bar links, and more. Perfect for fabricating suspension parts on your 4x4, sand rail, hot rod, race car, utv and more! Price is for one pair of spacers, enough for one heim joint.

- Shock mounts
- Radius rods
- Sway bar links
- Tie rods
- Drag links
- Control arms
- 4 Link setups
- Panhard bar
- Hi steer

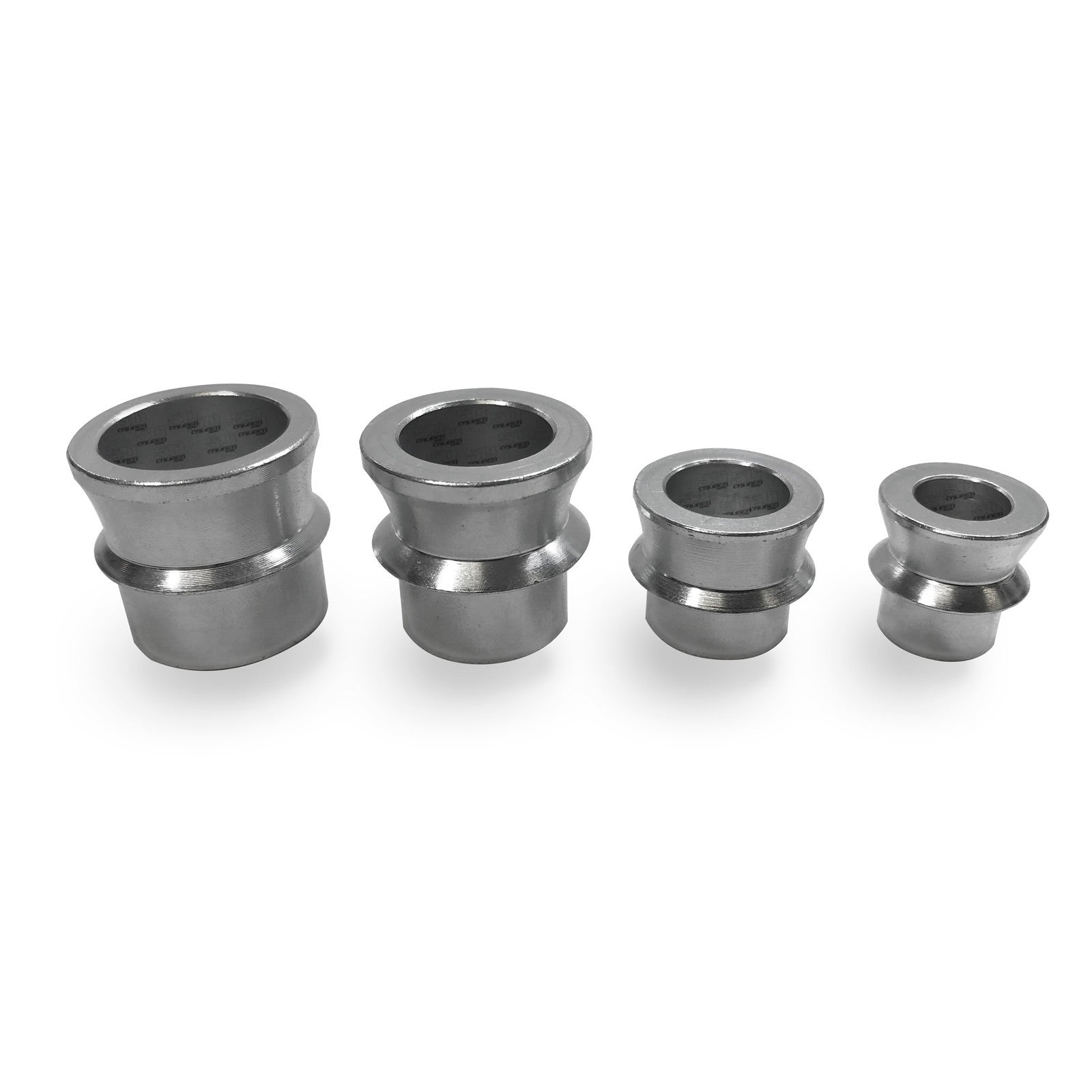

Specifications:

1/2": .375" ID x .494" OD x .256" W
- 1/2" Hole to 3/8" bolt size

5/8" : .500" ID x .619" OD x .672" W
- 5/8" Hole to 1/2" bolt size

3/4" : .625" ID x .743" OD x .922" W
- 3/4" Hole to 5/8" bolt size

7/8": .750" ID x .869" OD x .926" W
- 7/8" Hole to 3/4" bolt size
