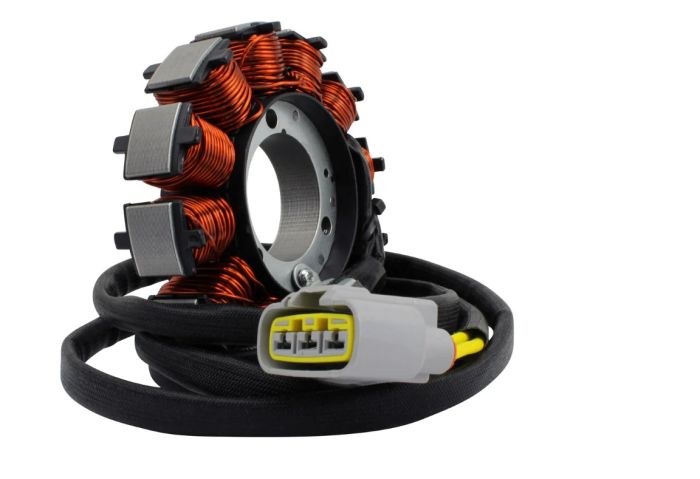

Stator 650W for Can-Am Commander / Outlander / Renegade 2020-2025 - RMS010-108660

Brand new aftermarket 650W stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 170 mm
Length of wires grommet to plug: 1500 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.3 ohms +/-20%
Alternator: Yellow to ground = O.L

Before installing your new stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2025 Can-Am Outlander 650 EFI2025 Can-Am Outlander Max 6502025 Can-Am Outlander 1000R2025 Can-Am Renegade 1000R2025 Can-Am Renegade 6502025 Can-Am Outlander Max 10002025 Can-Am Outlander Max 10002025 Can-Am Outlander Max 650 DPS2025 Can-Am Renegade XXC 10002024 Can-Am Outlander 8502024 Can-Am Outlander 1000R2024 Can-Am Renegade 1000R2024 Can-Am Renegade 6502024 Can-Am Outlander Max 8502024 Can-Am Outlander Max 1000R2024 Can-Am Outlander Max 10002024 Can-Am Outlander Max 650 DPS2024 Can-Am Outlander 850 XMR2024 Can-Am Outlander 850 XT2024 Can-Am Renegade XXC 10002023 Can-Am Outlander 8502023 Can-Am Outlander T 10002023 Can-Am Outlander T 6502023 Can-Am Outlander 1000R2023 Can-Am Renegade T 6502023 Can-Am Outlander 5702023 Can-Am Renegade T 6502023 Can-Am Maverick Trail 10002023 Can-Am Renegade 1000R2023 Can-Am Renegade 6502023 Can-Am Outlander Max 8502023 Can-Am Outlander Max 5702023 Can-Am Outlander 570 DPS2023 Can-Am Outlander Max 1000R2023 Can-Am Outlander Max 10002023 Can-Am Outlander Max 650 DPS2023 Can-Am Outlander 650 XMR2023 Can-Am Outlander Max 650 XT2023 Can-Am Outlander 650 XT2023 Can-Am Outlander 850 XMR2023 Can-Am Outlander 850 XT2023 Can-Am Outlander 650 DPS2023 Can-Am Renegade XXC 10002022 Can-Am Outlander 650 EFI2022 Can-Am Outlander 8502022 Can-Am Outlander T 10002022 Can-Am Outlander T 6502022 Can-Am Outlander 1000R2022 Can-Am Renegade T 6502022 Can-Am Outlander 5702022 Can-Am Outlander 10002022 Can-Am Renegade 1000R2022 Can-Am Renegade 6502022 Can-Am Outlander Max 8502022 Can-Am Outlander Max 5702022 Can-Am Outlander 570 DPS2022 Can-Am Outlander Max 1000R2022 Can-Am Outlander Max 10002022 Can-Am Outlander Max 650 DPS2022 Can-Am Outlander 570 XMR2022 Can-Am Outlander 650 XMR2022 Can-Am Outlander Max 650 XT2022 Can-Am Outlander 650 XT2022 Can-Am Outlander 850 XMR2022 Can-Am Outlander 850 XT2022 Can-Am Outlander 650 DPS2022 Can-Am Renegade 8502022 Can-Am Outlander 570 XT2022 Can-Am Renegade XXC 10002021 Can-Am Outlander 650 EFI2021 Can-Am Outlander 8502021 Can-Am Outlander T 10002021 Can-Am Outlander T 6502021 Can-Am Outlander 1000R2021 Can-Am Renegade T 6502021 Can-Am Outlander T 5702021 Can-Am Renegade T 10002021 Can-Am Renegade 1000R2021 Can-Am Outlander Max 8502021 Can-Am Outlander Max 10002021 Can-Am Outlander Max 5702021 Can-Am Outlander Max 1000R2021 Can-Am Outlander 10002021 Can-Am Renegade 10002021 Can-Am Outlander Max 650 DPS2021 Can-Am Outlander 650 XMR2021 Can-Am Outlander Max 650 XT2021 Can-Am Renegade 570 XMR2021 Can-Am Outlander 650 XT2021 Can-Am Outlander 850 XMR2021 Can-Am Outlander 850 XT2021 Can-Am Outlander 650 DPS2021 Can-Am Renegade XXC 10002020 Can-Am Outlander 650 EFI2020 Can-Am Outlander Max 6502020 Can-Am Outlander 8502020 Can-Am Outlander T 10002020 Can-Am Outlander T 6502020 Can-Am Outlander 1000R2020 Can-Am Renegade T 6502020 Can-Am Outlander 10002020 Can-Am Outlander T 5702020 Can-Am Renegade T 10002020 Can-Am Renegade 1000R2020 Can-Am Renegade 6502020 Can-Am Outlander Max 8502020 Can-Am Outlander Max 10002020 Can-Am Outlander Max 1000R2020 Can-Am Outlander T Max 5702020 Can-Am Outlander T Max 10002020 Can-Am Renegade 10002020 Can-Am Outlander Max 650 DPS2020 Can-Am Outlander 650 XMR2020 Can-Am Outlander Max 650 XT2020 Can-Am Renegade 570 XMR2020 Can-Am Outlander 650 XT2020 Can-Am Outlander 850 XMR2020 Can-Am Outlander 650 DPS2020 Can-Am Commander Max 800 R2020 Can-Am Outlander T Max 6502020 Can-Am Commander 800 R2020 Can-Am Renegade XXC 10002020 Can-Am Commander Max 800R DPS
