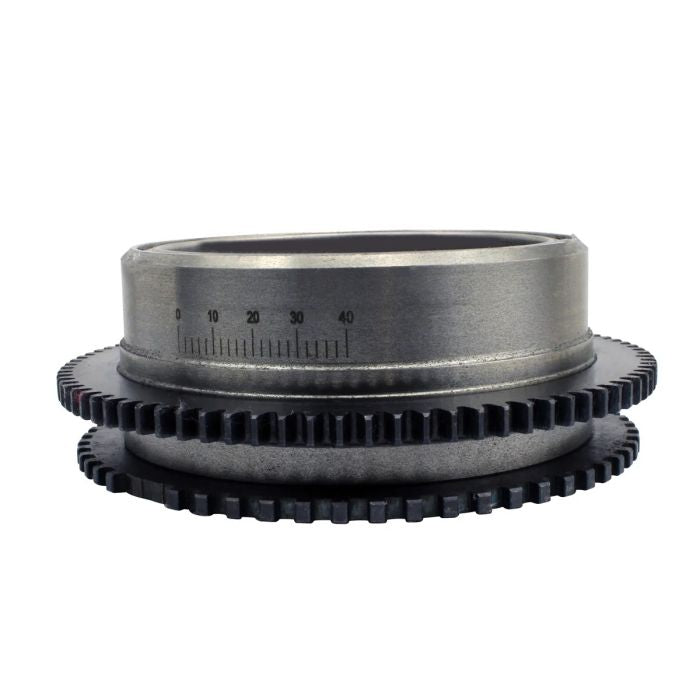

Capped Magneto Flywheel for Polaris Ranger / Rzr / Sportsman 2012-2017 - RMS120-108417

Don't waste time with temporary solutions

A well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Built to OEM size

Fits precisely in your ride: install it and forget it.

Improved epoxy

Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

High grade steel capping

Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing

Eliminates crankshaft vibrations for longer engine longevity.

Dimensions:
Exterior Diameter: 131 mm & 168 mm
Interior Diameter: 109 mm
Interior Diameter Center Housing: 29 mm
Exterior Diameter Center Housing: 40 mm
Thickness (exterior): 60 mm
Thickness (interior): 49 mm

Before attempting to start your Polaris, adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2017 Polaris Ranger 800 6x62016 Polaris Ranger 800 6x62015 Polaris Ranger 800 6x62015 Polaris Sportsman 800 Forest EFI2014 Polaris Sportsman 800 EFI2014 Polaris Ranger 8002014 Polaris Ranger 800 6x62014 Polaris RZR 800 EFI2014 Polaris RZR 800 S2014 Polaris Ranger Crew 8002014 Polaris RZR 4 8002014 Polaris Sportsman 800 6x6 EFI2014 Polaris Sportsman 800 Forest EFI2013 Polaris Sportsman 800 EFI2013 Polaris Ranger 8002013 Polaris Ranger 800 6x62013 Polaris RZR 800 EFI2013 Polaris RZR 800 S2013 Polaris Ranger Crew 8002013 Polaris RZR 4 8002013 Polaris Sportsman 800 6x6 EFI2013 Polaris Sportsman 800 Forest EFI2012 Polaris Sportsman 800 EFI2012 Polaris Sportsman 800 6x6 EFI2012 Polaris Sportsman 800 Forest EFI

2-year manufacturer's warranty

All products are tested
