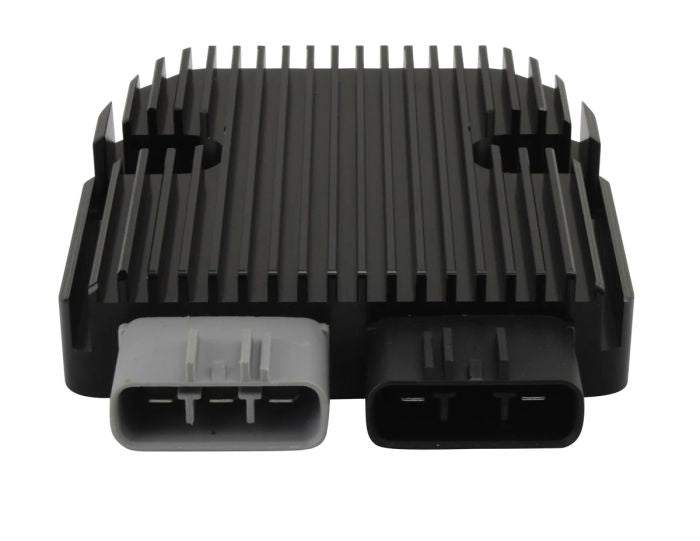

REVOLT Regulator + Harness for Polaris Sportsman / Classic 2002-2006 - RMS022-108521

REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era.

85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market to considerably improve the rectifier reliability.

Runs 50% cooler than OEM

2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market

Arctic Frostbite housing with increased and deeper fins is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.

Manufacturer's limited lifetime warranty

REVOLT Voltage Regulator:

Dimensions:
Width: 102 mm
Length: 103 mm
Height: 26 mm
Distance between fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Wires length: 150 mm
Number of yellow wires: 3
Number of red wires: 2
Number of green wires: 2
Number of plugs: 4

Before installing your new REVOLT Voltage Regulator Rectifier:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2006 Polaris Sportsman 800 EFI2006 Polaris Sportsman 700 EFI2005 Polaris Sportsman 800 EFI2005 Polaris Sportsman 700 EFI2005 Polaris Frontier Touring 784 4-Stroke EFI L/C2004 Polaris Frontier Touring 784 4-Stroke EFI L/C2004 Polaris Frontier Classic 784 EFI L/C -- From 2002/01/012003 Polaris Frontier Classic 784 EFI L/C -- Up to 2002/01/012003 Polaris Frontier Touring 784 4-Stroke EFI L/C2003 Polaris Frontier Classic 784 EFI L/C -- From 2002/01/012002 Polaris Indy Frontier 784 4-Stroke EFI L/C
