50 Caliber Racing

Yamaha Rhino 686cc Big Bore Kit

Yamaha Rhino 686cc Big Bore Kit

$229.99 USD
$229.99 USD
Sale Sold out
Shipping calculated at checkout.

Fits these machines

Verify fit
Make
Yamaha
Model
Grizzly 660Raptor 660Rhino 660
Years
2001–2008
Type
ATVUTV

More parts for the Grizzly 660 →

Want to be sure it fits?Parts can vary by year, make, and model. If you already know it fits, go ahead and order with confidence — no call required. If you’d like a hand, reach out and we’ll gladly confirm fitment for you. Email sales@jkloffroad.com, call or text 579-509-2791.

Yamaha Rhino 686cc Big Bore Kit 2004-2007

Bolt on 102mm 686cc Big Bore Kit for all Yamaha Rhino Raptor and Grizzly 660 models. This is a complete kit,with everything you need.  Our cylinders have larger than stock water jackets for better cooling, and are a much more reliable option than boring your stock cylinder. This kit can be installed by anyone with basic mechanical skills that is not afraid to turn some nuts and bolts. Breathe new life into your Yamaha with our high quality, affordable and reliable big bore kit!

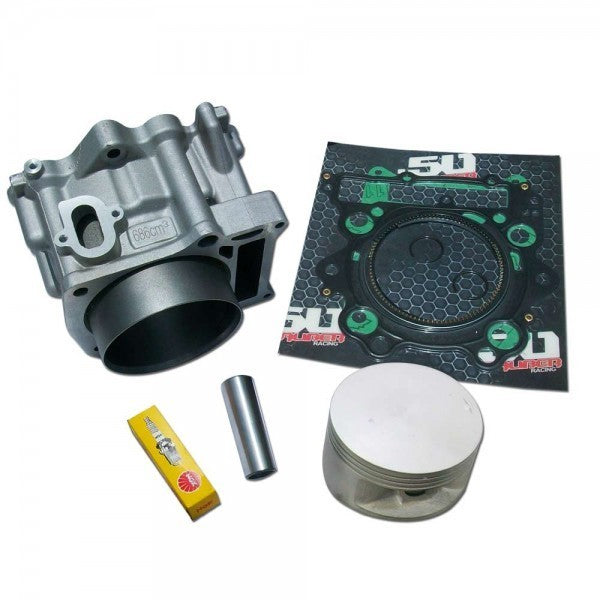

Yamaha Rhino 660cc Big Bore kit (686cc) Includes:

1 - 102mm Cylinder
1 - 10:1 Piston
1 - Piston Ring Kit
2 - Circlips
1 - Wrist Pin
1 - Base Gasket
1 - Head Gasket
1 - NGK Spark Plug



Replaces Yamaha part number:
5KM-11310-00-00


Fits the following Yamaha models:
Rhino 660  (2004-2007)

Raptor 660 (all years)

Grizzly 660 (all years)
